OVERVIEW

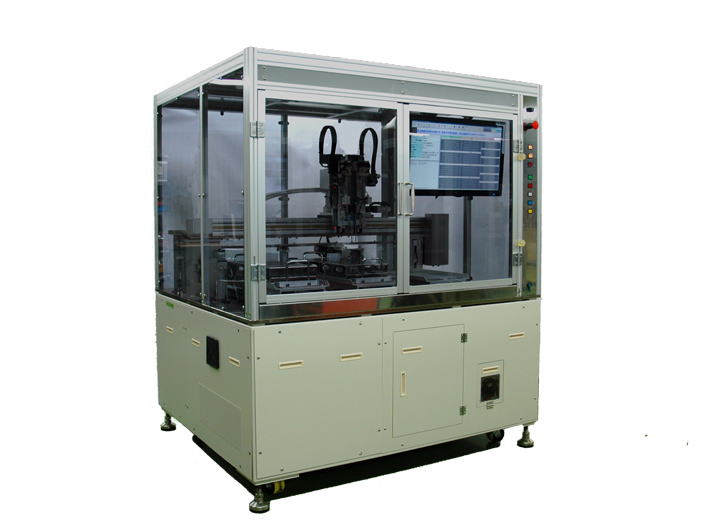

ODH-1000 is the system to dispense a certain amount of liquid to the specified positions acurately at high speed with two dispensing nozzles. We are able to provide higher-end system "ODH-2000" with higher cylcle time.

---

---

FEATURES

「ODH-1000」　　　　　

• High speed operation : 9.6 seconds/cycle (4.8 seconds/chip at 150 μl)
• Touch panel type monitor : Windows program for easy operation
• Discpensing volume can be easily configured by Pumps unit
• Automatic dispensing by means of upper PC communications and discrete dispensing in offline mode are both available
• Employs drip-preventive shutter
• EEquipped with a counter for jamming detection and control of number of disposed test tubes
• Equipped with a supply rack barcode reader
•

　　←　Machine Operation Animation

---
